Idec
AVLW49902D-R-24V
Switch Emergency Stop N.C. DPST Mushroom Button 10A 440VAC 220VDC 745.7VA Screw Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec AVLW49902D-R-24V technical specifications.
General
Actuator Color
Red
Actuator Diameter
40mm
Contact Material
Silver
Depth
40mm
Height
71mm
Illumination Color
Red
Illumination Type
LED
Length
40mm
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
440V
Max Voltage Rating (DC)
220V
Mechanical Life
500000Cycles
Mount
Panel
Orientation
Straight
Ratings
IP65
RoHS Compliant
Yes
Series
TW
Termination
Screw
Throw Configuration
DPST
Compliance
RoHS
Compliant
Datasheet
Idec AVLW49902D-R-24V Datasheet
Download the complete datasheet for Idec AVLW49902D-R-24V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

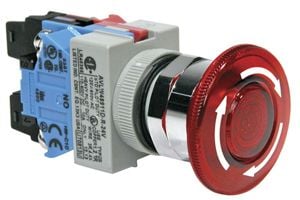

Product Images
