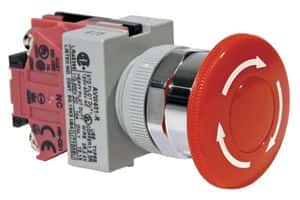

The TW Series Panel Mount DPST/SPST Emergency Stop Switch is a specialty switch designed for emergency stop applications. It features a silver contact material and a red actuator with a diameter of 40mm. The switch has a mechanical life of 500,000 cycles and operates within a temperature range of -25°C to 50°C. It is rated for 440V AC and 220V DC and has an IP65 rating for dust and water resistance. The switch is mounted on a panel and has a screw termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Idec AVW411-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Idec AVW411-R technical specifications.
| Actuator Color | Red |
| Actuator Diameter | 40mm |
| Contact Material | Silver |
| Depth | 40mm |
| Height | 71mm |
| Length | 40mm |
| Max Operating Temperature | 50°C |
| Mechanical Life | 500000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 220V |
| Mount | Panel |
| Number of Poles | 1 |
| Orientation | Straight |
| Ratings | IP65 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | TW |
| Termination | Screw |
| Throw Configuration | DPST, SPST |
| Voltage Rating (AC) | 440V |
| RoHS | Not Compliant |
