Idec
FB1W-HW4B-Y202R
Switch Emergency Stop N.C. DPST Mushroom Button 10A 440VAC 220VDC 745.7VA Screw Panel Mount
PackageMetal
MountingSurface Mount
Quick Jump:
Technical Specifications
Idec FB1W-HW4B-Y202R technical specifications.
General
Actuator Diameter
40mm
Actuator Type
Push-Pull
Package/Case
Metal
Color
Red, Black, Yellow
Depth
25.5mm
Head Diameter
40mm
Length
29.4mm
Material
Metal
Mount
Surface Mount
Operating Supply Voltage
440V
Ratings
IP65
Reach SVHC Compliant
Unknown
Series
HW
Throw Configuration
DPST
Type
Switch
Width
41.4mm
Compliance
RoHS
Compliant
Datasheet
Idec FB1W-HW4B-Y202R Datasheet
Download the complete datasheet for Idec FB1W-HW4B-Y202R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

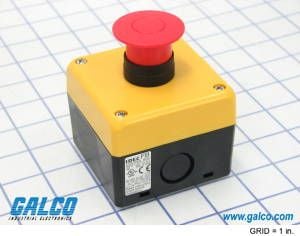

Product Images
