Configurable safety controller featuring 16 inputs and 16 relay outputs. This electromechanical switch operates at 24V with a 25A contact current rating. Designed for DIN rail mounting, it offers screw termination and a power consumption of 48W. Approvals include UL, CE, and TUV, with an IP20 rating. Operating temperature range is -10°C to 55°C.
MountingDIN Rail
Power48W
Quick Jump:
Technical Specifications
Idec FS1A-C11S technical specifications.
General
| Approvals | UL, CE, TUV |
| Contact Current Rating | 25A |
| Depth | 114.5mm |
| Length | 72mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Mount | DIN Rail |
| Number of Channels | 1 |
| Number of Inputs | 16 |
| Number of Outputs | 16 |
| Operating Supply Voltage | 24V |
| Output Type | RELAY |
| Power Consumption | 48W |
| Ratings | IP20 |
| Series | FS1A |
| Termination | Screw |
| Width | 113.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Idec FS1A-C11S Datasheet
Download the complete datasheet for Idec FS1A-C11S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

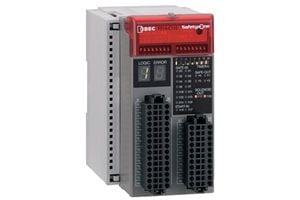

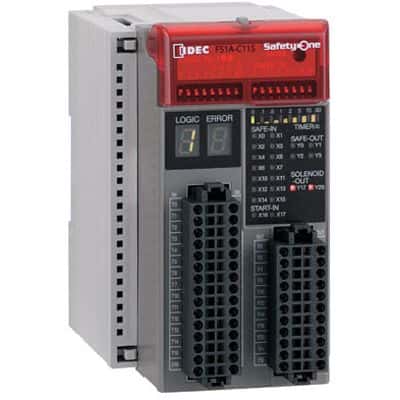

Product Images
