The FT1A-H40RSA is a module with 24 inputs and 16 outputs, designed for DIN rail mounting. It features a maximum operating temperature of 55°C and a minimum operating temperature of 0°C. The module is approved for use in UL and CE environments and has an IP20 rating. It measures 160mm in length, 60mm in width, and 110mm in depth.
PackageModule
MountingDIN Rail
Quick Jump:
Technical Specifications
Idec FT1A-H40RSA technical specifications.
General
| Approvals | UL, CE |
| Package/Case | Module |
| Depth | 110mm |
| Display Type | LCD |
| Input Type | SINK |
| Interface | RS-232, USB, Ethernet, RS-422, RS-485, SD |
| Length | 160mm |
| Max Operating Temperature | 55°C |
| Memory Size | 47.4KB |
| Min Operating Temperature | 0°C |
| Mount | DIN Rail |
| Number of Inputs | 24 |
| Number of Outputs | 16 |
| Ratings | IP20 |
| Series | FT1A SmartAXIS |
| Width | 60mm |
Compliance
| RoHS | Compliant |
Datasheet
Idec FT1A-H40RSA Datasheet
Download the complete datasheet for Idec FT1A-H40RSA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

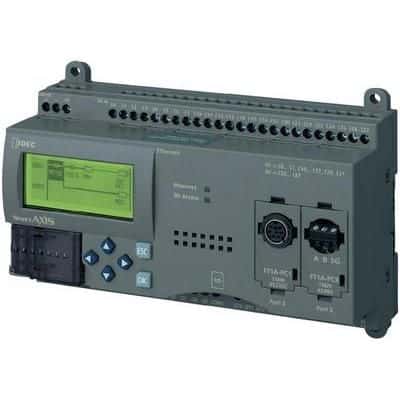

Product Images
