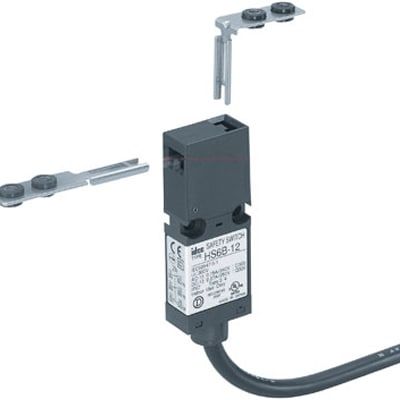

The HS6B-02B01 is a DPST switch with an IP67 rating, suitable for operating in temperatures up to 70°C. It features a screw mount and cable termination. With a mechanical life of 1,000,000 cycles and electrical life of 100,000 cycles, this switch is designed for reliable operation. It is compliant with RoHS regulations and has a maximum voltage rating of 250V AC and DC.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Idec HS6B-02B01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Idec HS6B-02B01 technical specifications.
| Depth | 30mm |
| Electrical Life | 100000Cycles |
| Length | 78mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 1000000Cycles |
| Mount | Screw |
| Orientation | Straight |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | HS6B |
| Termination | Cable |
| Throw Configuration | DPST |
| Weight | 120g |
| Width | 30mm |
| RoHS | Compliant |
