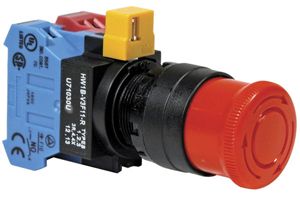

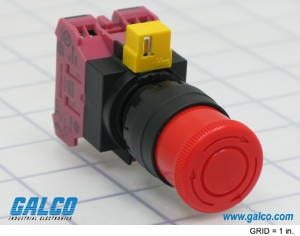

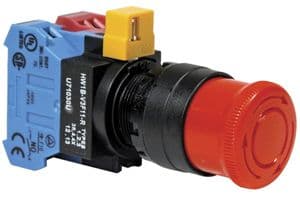

Emergency stop switch featuring a red mushroom actuator with a 29mm diameter, suitable for panel mounting. This DPST switch offers a 10A contact current rating with silver contacts and a maximum voltage rating of 440VAC or 220VDC, with a VA rating of 745.7VA. It boasts a mechanical life of 500,000 cycles and operates within a temperature range of -25°C to 50°C, with IP65 and IP20 ratings. Termination is via screw, and the unit is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Idec HW1B-V3F02-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Idec HW1B-V3F02-R technical specifications.
| Actuator Color | Red |
| Actuator Diameter | 29mm |
| Color | Red |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Depth | 29.4mm |
| Head Diameter | 29mm |
| Height | 82.2mm |
| Length | 45.7mm |
| Lens Color | Red |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 220V |
| Mechanical Life | 500000Cycles |
| Mount | Panel |
| Operating Supply Voltage | 440V |
| Orientation | Straight |
| Ratings | IP65, IP20 |
| RoHS Compliant | Yes |
| Series | HW |
| Termination | Screw |
| Throw Configuration | DPST |
| Width | 41.4mm |
| RoHS | Not Compliant |
