Idec
HW1B-V4F02-R
Switch Emergency Stop N.C. DPST Mushroom Button 10A 440VAC 220VDC 745.7VA Screw Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec HW1B-V4F02-R technical specifications.
General
Actuator Diameter
40mm
Color
Red
Depth
32mm
Head Diameter
40mm
Length
29.4mm
Lens Color
Red
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Mount
Panel
Operating Supply Voltage
440V
Ratings
IP65
RoHS Compliant
Yes
Series
HW
Termination
Screw
Throw Configuration
DPDT
Width
41.4mm
Compliance
RoHS
Not Compliant
Datasheet
Idec HW1B-V4F02-R Datasheet
Download the complete datasheet for Idec HW1B-V4F02-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

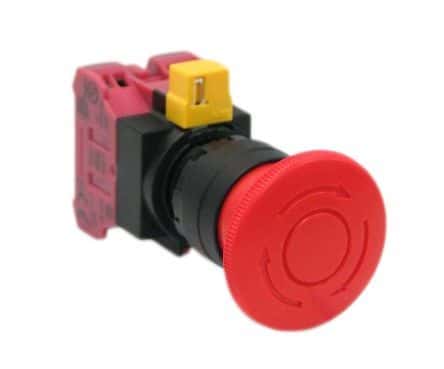

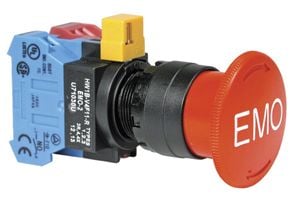

Product Images
