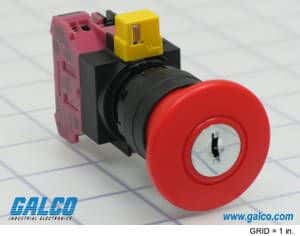

The 40mm Red Silver Contact SPST Emergency Stop Switch is a pushbutton actuator with a maximum operating temperature range of -25°C to 50°C. It has a maximum voltage rating of 220V DC and 440V AC, and a mechanical life of 500,000 cycles. The switch is rated for IP65 and is RoHS compliant. It is designed for panel mount with a screw termination and has a straight orientation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Idec HW1B-X4F01-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Idec HW1B-X4F01-R technical specifications.
| Actuator Diameter | 40mm |
| Actuator Type | Pushbutton |
| Color | Red |
| Contact Material | Silver |
| Depth | 49.4mm |
| Diameter | 40mm |
| Head Diameter | 40mm |
| Length | 29.4mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 220V |
| Mechanical Life | 500000Cycles |
| Mount | Panel, Screw |
| Operating Supply Voltage | 440V |
| Orientation | Straight |
| Ratings | IP65 |
| RoHS Compliant | Yes |
| Series | HW |
| Termination | Screw |
| Throw Configuration | SPST |
| Width | 41.4mm |
| RoHS | Not Compliant |
