Technical Specifications
Idec HW1E-LV4F11QD-R-6V technical specifications.
General
Actuator Color
Red
Actuator Diameter
40mm
Contact Material
Silver
Depth
40mm
Height
95mm
Illumination Color
Red
Illumination Type
LED
Length
40mm
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
440V
Max Voltage Rating (DC)
220V
Mechanical Life
500000Cycles
Mount
Panel
Orientation
Straight
Ratings
IP20
Termination
Screw
Throw Configuration
DPST, SPST
Compliance
RoHS
Not Compliant
Datasheet
Idec HW1E-LV4F11QD-R-6V Datasheet
Download the complete datasheet for Idec HW1E-LV4F11QD-R-6V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

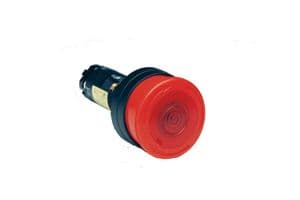

Product Images
