This panel mount DPST switch features a silver contact material and a maximum operating temperature of 50°C. It has a mechanical life of 5,000,000 cycles and an electrical life of 10,000,000 cycles. The switch is RoHS compliant and has a maximum voltage rating of 440V AC and 220V DC. It is designed for panel mount applications and has a straight orientation.
MountingPanel
Quick Jump:
Technical Specifications
Idec HW4B-M4F02-R technical specifications.
General
| Actuator Color | Red |
| Actuator Length | 10.2mm |
| Contact Material | Silver |
| Electrical Life | 10000000Cycles |
| Max Operating Temperature | 50°C |
| Mechanical Life | 5000000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 220V |
| Mount | Panel |
| Orientation | Straight |
| RoHS Compliant | Yes |
| Termination | Contact Block |
| Throw Configuration | DPST |
Compliance
| RoHS | Not Compliant |
Datasheet
Idec HW4B-M4F02-R Datasheet
Download the complete datasheet for Idec HW4B-M4F02-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

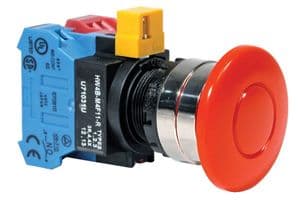

Product Images
