Current Rating1A
MountingDIN Rail
Quick Jump:
Technical Specifications
Idec NC1V-1100-1AA technical specifications.
General
Actuator Type
Lever
Breaker Type
Magnetic (Hydraulic Delay)
Current Rating
1A
Mount
DIN Rail
Number of Poles
1
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
NC1V
Termination
Screw
Time to Trip
240s
Voltage Rating (AC)
250V
DC Rated Voltage
65V
Compliance
RoHS
Compliant
Datasheet
Idec NC1V-1100-1AA Datasheet
Download the complete datasheet for Idec NC1V-1100-1AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

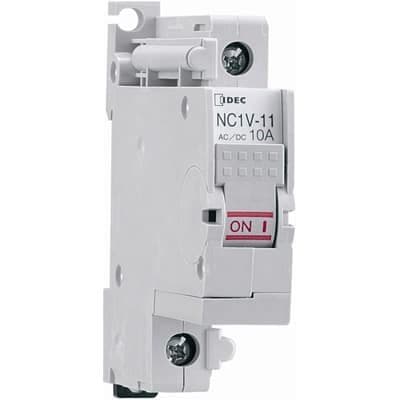

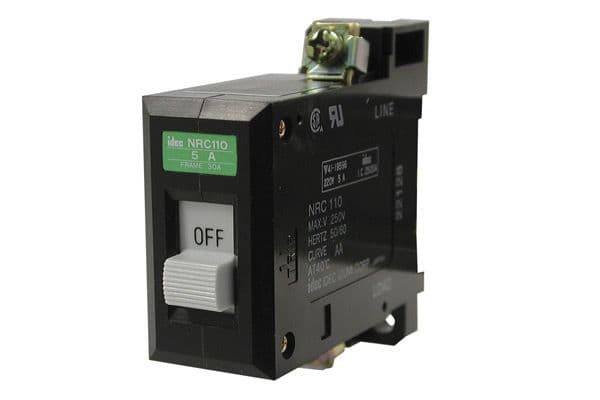

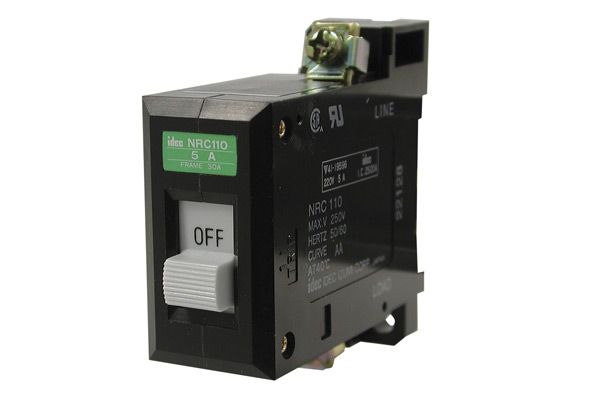

Product Images
