Technical Specifications
Idec NC1V-1100-5AA technical specifications.
General
| Actuator Type | Lever |
| Breaker Type | Magnetic (Hydraulic Delay) |
| Current Rating | 5A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Mount | DIN Rail |
| Number of Poles | 1 |
| RoHS Compliant | Yes |
| Series | NC1V |
| Termination | Screw |
| Time to Trip | 240s |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 65V |
Compliance
| RoHS | Compliant |
Datasheet
Idec NC1V-1100-5AA Datasheet
Download the complete datasheet for Idec NC1V-1100-5AA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

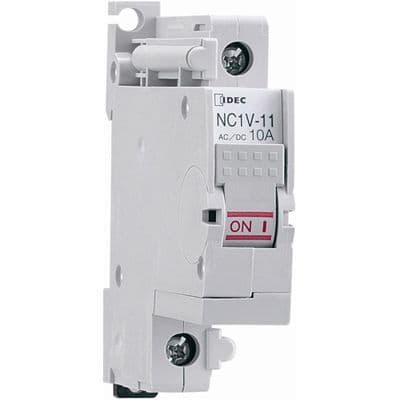

Product Images
