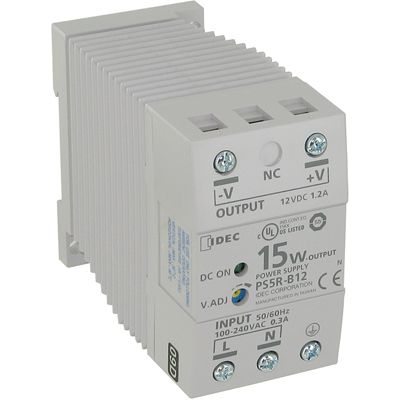

The PS5R-B12 is a 12V 1.2A AC/DC power supply with a nominal output voltage of 12V and a maximum output power of 14W. It operates within a temperature range of -10°C to 60°C and is suitable for panel or DIN rail mounting. The power supply has a maximum input voltage of 264V and a voltage rating of 240V AC. It is not SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Idec PS5R-B12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Idec PS5R-B12 technical specifications.
| Current - Output 1 | 1.2A |
| Current Rating | 1.2A |
| Frequency | 833MHz |
| Height | 2.95inch |
| Length | 95mm |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 1.2A |
| Max Output Power | 15W |
| Mount | Panel, DIN Rail |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Current | 1.2A |
| Output Power | 14W |
| Output Voltage | 12V |
| Reach SVHC Compliant | No |
| Voltage - Output 1 | 12V |
| Voltage Rating (AC) | 240V |
| DC Rated Voltage | 340V |
| Width | 1.77inch |
| RoHS | Compliant |
