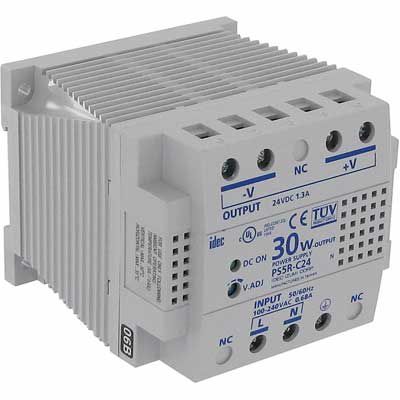

The PS5R-C24 is a 24V DC power supply with a maximum output current of 1.3A and a maximum output power of 31W. It operates within a temperature range of -10°C to 60°C and is rated for a maximum input voltage of 264V AC. The supply is available in a panel mount and DIN rail mount configuration with a width of 3.54inch and a length of 95mm. It is not SVHC compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Idec PS5R-C24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Idec PS5R-C24 technical specifications.
| Current - Output 1 | 1.3A |
| Current Rating | 1.3A |
| Frequency | 833MHz |
| Height | 2.95inch |
| Length | 95mm |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 1.3A |
| Max Output Power | 30W |
| Mount | Panel, DIN Rail |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 1.3A |
| Output Power | 31W |
| Output Voltage | 24V |
| Reach SVHC Compliant | No |
| Voltage - Output 1 | 24V |
| Voltage Rating (AC) | 240V |
| DC Rated Voltage | 340V |
| Width | 3.54inch |
| RoHS | Compliant |
