The PS5R-SC12 is a single-output AC/DC power supply with a nominal output voltage of 12V and a maximum output current of 2.5A. It operates within a temperature range of -10°C to 60°C and is compliant with RoHS regulations. The supply has a maximum input voltage of 264V and a maximum output power of 30W. It is designed for panel or DIN rail mounting.
Current Rating2.5A
MountingPanel, DIN Rail
Power30W
Quick Jump:
Technical Specifications
Idec PS5R-SC12 technical specifications.
General
| Current Rating | 2.5A |
| Height | 3.74inch |
| Length | 108mm |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 2.5A |
| Max Output Power | 30W |
| Mount | Panel, DIN Rail |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Current | 2.5A |
| Output Power | 30W |
| Output Voltage | 12V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage Rating (AC) | 264V |
| DC Rated Voltage | 370V |
| Width | 1.42inch |
Compliance
| RoHS | Not Compliant |
Datasheet
Idec PS5R-SC12 Datasheet
Download the complete datasheet for Idec PS5R-SC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

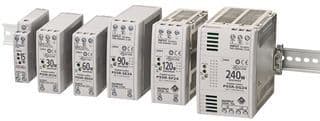

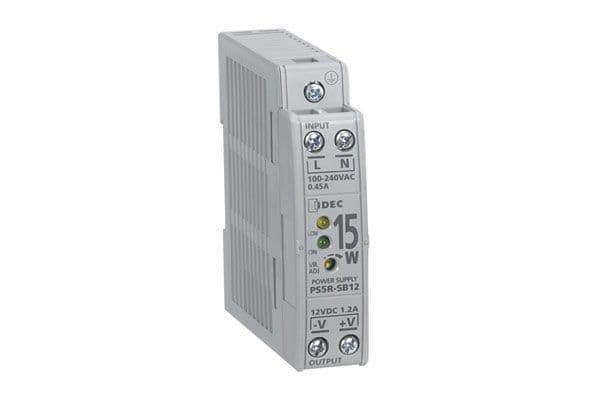

Product Images
