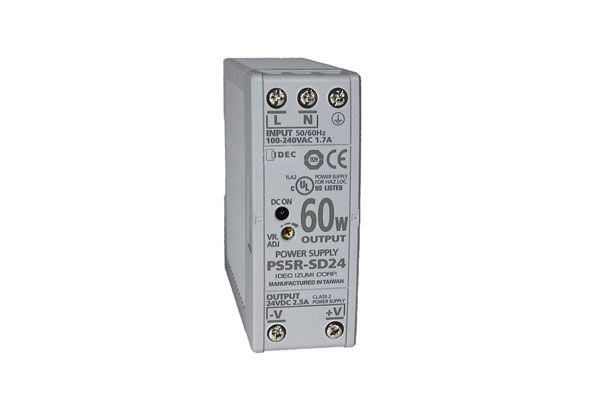

60W AC/DC power supply featuring a single 24V output at 2.5A. This general-purpose power supply operates with an input voltage range of 85V to 264V AC and offers a maximum output power of 60W. Designed for panel or DIN rail mounting, it boasts a compact width of 1.42 inches and a length of 108mm. Operating temperature range is -10°C to 60°C, and the unit is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Idec PS5R-SD24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Idec PS5R-SD24 technical specifications.
| Current - Output 1 | 2.5A |
| Current Rating | 2.5A |
| Height | 3.74inch |
| Input Current | 1.7A |
| Length | 108mm |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 2.5A |
| Max Output Power | 60W |
| Mount | Panel, DIN Rail |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 2.5A |
| Output Power | 60W |
| Output Voltage | 24V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 24V |
| Voltage Rating (AC) | 264V |
| DC Rated Voltage | 370V |
| Width | 1.42inch |
| RoHS | Not Compliant |
Download the complete datasheet for Idec PS5R-SD24 to view detailed technical specifications.
