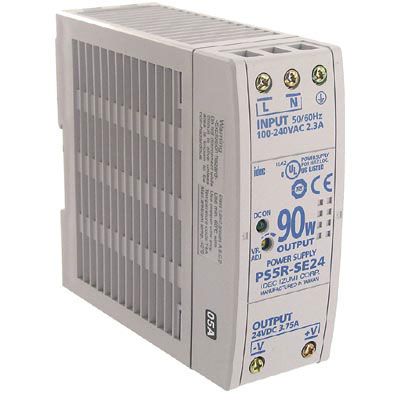

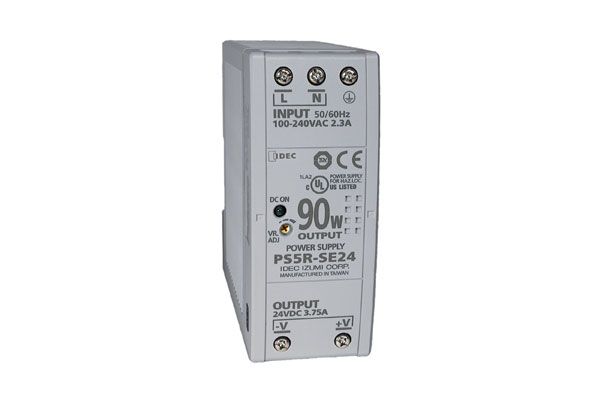

This AC/DC power supply from Idec has a nominal output voltage of 24V and a maximum output current of 3.75A, resulting in a maximum output power of 90W. The supply is rated for a maximum input voltage of 264V and a minimum input voltage of 85V. It is designed for panel or DIN rail mounting and has a compact size with a length of 121mm, a width of 1.81inch, and a height of 4.53inch. The power supply operates within a temperature range of -10°C to 60°C and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Idec PS5R-SE24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Idec PS5R-SE24 technical specifications.
| Current - Output 1 | 3.75A |
| Current Rating | 3.75A |
| Height | 4.53inch |
| Length | 121mm |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 264V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 3.75A |
| Max Output Power | 90W |
| Mount | Panel, DIN Rail |
| Nominal Output Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 3.75A |
| Output Power | 90W |
| Output Voltage | 24V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage - Output 1 | 24V |
| Voltage Rating (AC) | 264V |
| DC Rated Voltage | 370V |
| Width | 1.81inch |
| RoHS | Not Compliant |
