Voltage Rating24V
Current Rating5A
MountingPanel, DIN Rail
Power120W
Quick Jump:
Technical Specifications

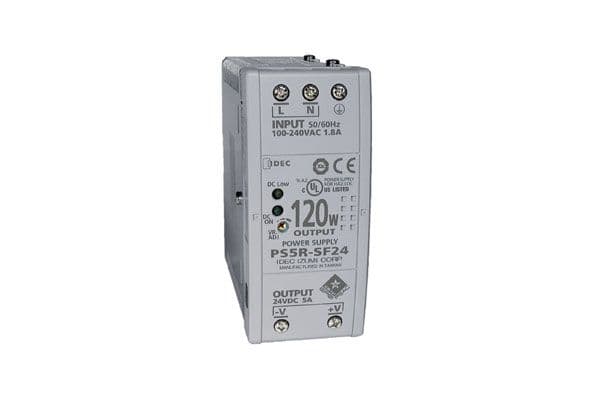

Idec PS5R-SF24 technical specifications.
General
Current - Output 1
5A
Current Rating
5A
Height
4.72inch
Length
129mm
Min Input Voltage (AC)
85V
Max Input Voltage
264V
Min Input Voltage
85V
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Max Output Current
5A
Max Output Power
120W
Mount
Panel, DIN Rail
Nominal Output Voltage
24V
Number of Outputs
1
Output Current
5A
Output Power
120W
Output Voltage
24V
Reach SVHC Compliant
No
RoHS Compliant
Yes
Voltage - Output 1
24V
Voltage Rating
24V
DC Rated Voltage
24V
Width
4.53inch
Compliance
RoHS
Not Compliant
Datasheet
Idec PS5R-SF24 Datasheet
Download the complete datasheet for Idec PS5R-SF24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
