Multi-range timer featuring DPDT switch function and plug termination. Operates with a 240V AC coil voltage and a 10A current rating. Supports a wide supply voltage range from 100V AC to 240V AC. Mountable via socketable, PCB, or plug-in methods. Certified with CE, cULus, and TUV approvals, and RoHS compliant. Functions within an operating temperature range of -20°C to 65°C.
Current Rating10A
MountingSocketable, PCB, Plug-In
Quick Jump:
Technical Specifications
Idec RTE-P2AF20 technical specifications.
General
| Approvals | CE, cULus, TUV |
| Coil Voltage (AC) | 240V |
| Current Rating | 10A |
| Max Current Rating | 10A |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage (AC) | 240V |
| Min Supply Voltage (AC) | 100V |
| Mount | Socketable, PCB, Plug-In |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | RTE |
| Switch Function | DPDT |
| Termination | Plug |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 8V |
Compliance
| RoHS | Compliant |
Datasheet
Idec RTE-P2AF20 Datasheet
Download the complete datasheet for Idec RTE-P2AF20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

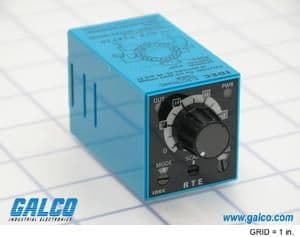

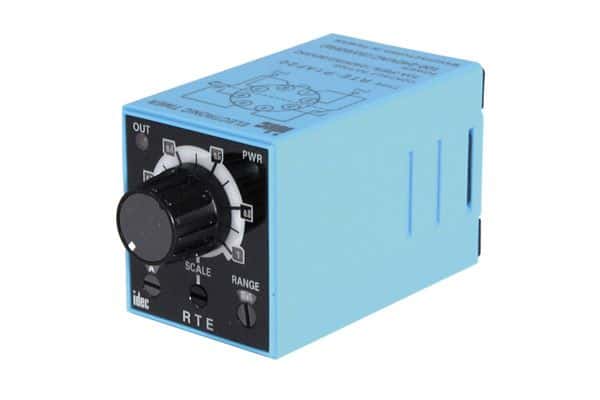

Product Images
