The IDEC part SH3B-05C is a compact and reliable Conn Relay Socket commonly used for connecting electrical relays in various industrial applications. This socket features a 3-position design, allowing for easy and secure screw terminal connections. It is specifically designed for surface mount installation, ensuring a compact and space-saving solution for your relay applications. With its sturdy construction and reliable performance, the SH3B-05C is an excellent choice for any project that requires a durable and efficient relay socket.
Voltage Rating300V
Current Rating10A
MountingDIN Rail, Panel
Quick Jump:
Technical Specifications
Idec SR3B-05 technical specifications.
General
Current Rating
10A
Gender
Female
Max Current Rating
10A
Mount
DIN Rail, Panel
Number of Contacts
3
Number of Positions
11
Orientation
Straight
Reach SVHC Compliant
No
RoHS Compliant
No
Series
SR
Termination
Screw
Voltage Rating
300V
DC Rated Voltage
300V
Compliance
RoHS
Not Compliant
Datasheet
Idec SR3B-05 Datasheet
Download the complete datasheet for Idec SR3B-05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

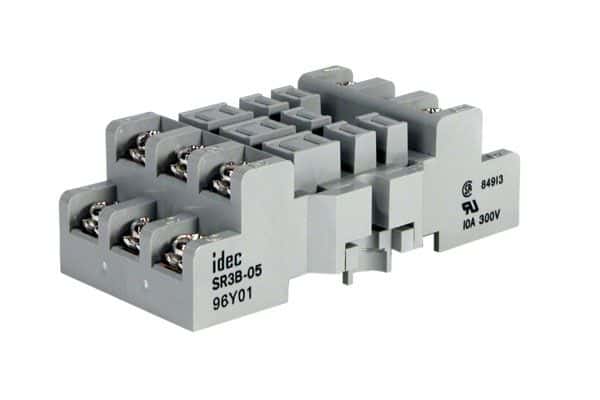

Product Images
