4-pole, 4-contact relay socket with a 7A current rating and 300V voltage rating. Features screw termination and supports DIN rail or panel mounting. Designed for straight orientation with 14 positions.
Voltage Rating300V
Current Rating7A
MountingDIN Rail, Panel
Quick Jump:
Technical Specifications
Idec SY4S-05 technical specifications.
General
| Current Rating | 7A |
| Gender | Female |
| Max Current Rating | 7A |
| Mount | DIN Rail, Panel |
| Number of Contacts | 4 |
| Number of Poles | 4 |
| Number of Positions | 14 |
| Orientation | Straight |
| RoHS Compliant | No |
| Series | SY |
| Termination | Screw |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
Compliance
| RoHS | Not Compliant |
Datasheet
Idec SY4S-05 Datasheet
Download the complete datasheet for Idec SY4S-05 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

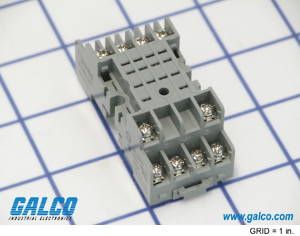

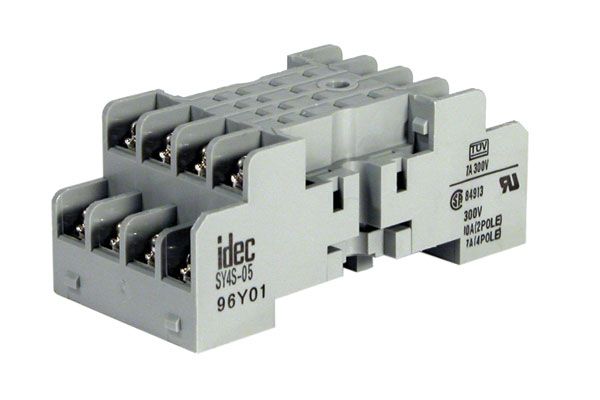

Product Images
