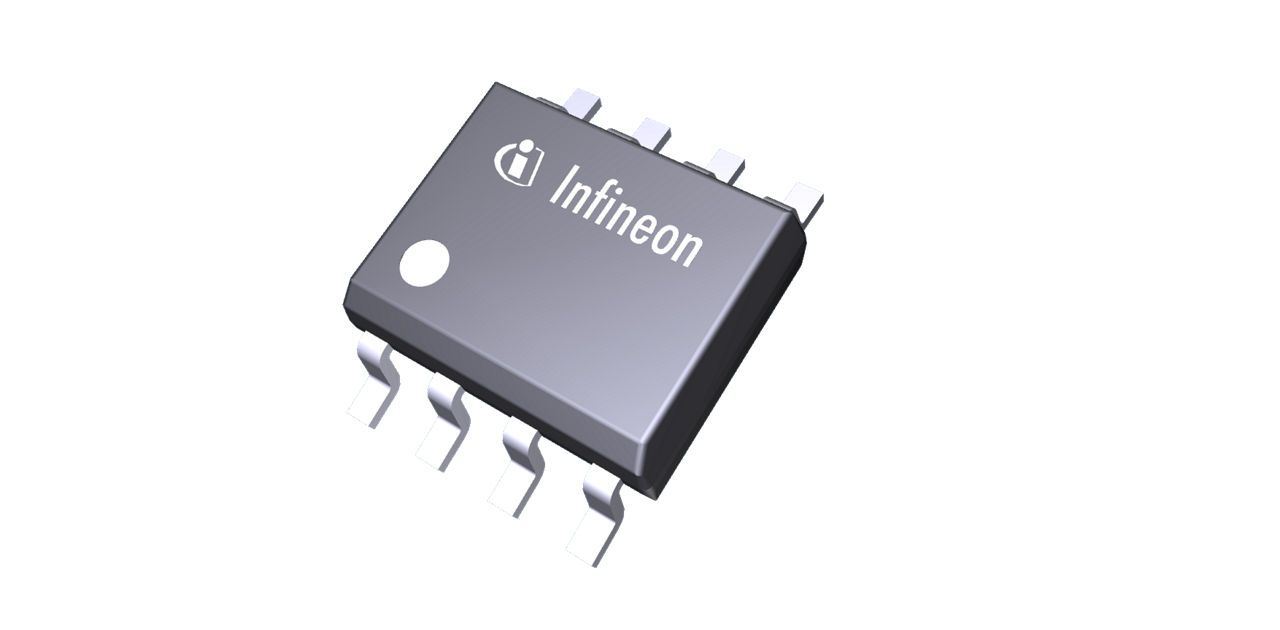

This single-channel isolated gate driver is designed for 600 V, 650 V, and 950 V MOSFET applications and carries a 1200 V voltage class rating with functional galvanic isolation. It delivers 4 A source and 3.5 A sink peak output current, operates with a 3.1 V to 17 V input supply range, and supports unipolar or bipolar supply operation. The device includes a 40 ns input filter, 115 ns turn-on and 120 ns turn-off propagation delay, short-circuit clamping, active shutdown, and CMTI greater than 100 kV/µs. It is qualified for industrial use and housed in a narrow PG-DSO-8 package.
Checking distributor stock and pricing after the page loads.
| Channels | 1 |
| Configuration | High-side |
| Input VCC range | 3.1 to 17V |
| Isolation type | Galvanic isolation - Functional |
| Output current (source) | 4A |
| Output current (sink) | 3.5A |
| Output power | 400mW |
| Qualification | Industrial |
| RDS(on) high-side max | 4.3Ω |
| RDS(on) high-side typ | 2.25Ω |
| RDS(on) low-side max | 5Ω |
| RDS(on) low-side typ | 2.25Ω |
| Thermal resistance junction-to-ambient | 165K/W |
| Turn-off propagation delay | 120ns |
| Turn-on propagation delay | 115ns |
| VBS UVLO off threshold | 8.5V |
| VBS UVLO on threshold | 9.1V |
| VCC UVLO off threshold | 2.75V |
| VCC UVLO on threshold | 2.85V |
| Voltage class | 1200V |
| Input filter | 40ns |
| CMTI | >100kV/µs |
| RoHS Compliant | Yes |
| Lead-free | Yes |
| Halogen Free | Yes |
These are design resources that include the Infineon 1EDI20N12AF
800W server power supply evaluation board featuring CoolMOS P7, CCM PFC, and LLC stages with digital control using XMC1402 and XMC4200 microcontrollers.
