Technical Specifications
Infineon BAR64-04E6327 technical specifications.
General
| Package/Case | TO-236-3 |
| Current Rating | 100mA |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Current Rating | 130mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Output Current | 100mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| DC Rated Voltage | 150V |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BAR64-04E6327 Datasheet
Download the complete datasheet for Infineon BAR64-04E6327 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

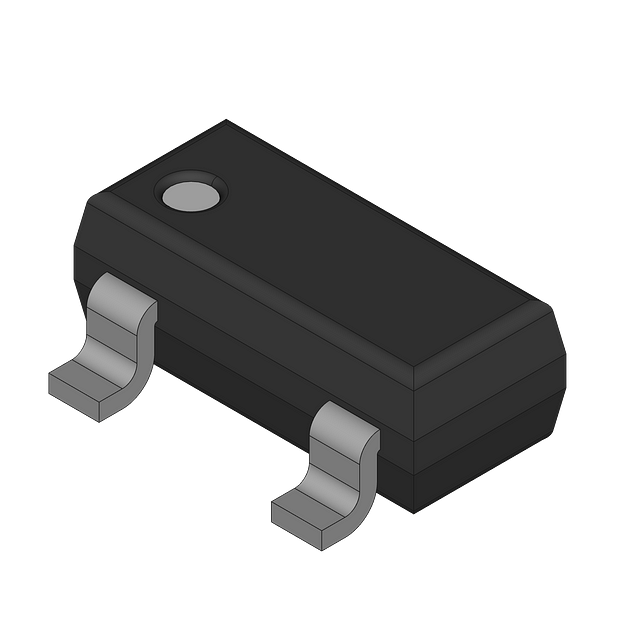

Product Images
