The BAV70W-E6327 is a surface mount diode with a maximum operating temperature of 150°C and a minimum operating temperature of -65°C. It has a maximum repetitive reverse voltage of 85V and a maximum reverse leakage current of 150nA. The diode is rated for a maximum surge current of 4.5A and a forward current of 200mA. It is packaged in a SOT-323-3 case and is lead free. The BAV70W-E6327 is RoHS compliant and is available in quantities of 3000 per reel.
PackageSOT-323-3
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BAV70W-E6327 technical specifications.
General
| Package/Case | SOT-323-3 |
| Current Rating | 200mA |
| Forward Current | 200mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 85V |
| Max Reverse Leakage Current | 150nA |
| Max Surge Current | 4.5A |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 4.5A |
| Reverse Recovery Time | 4ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 80V |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BAV70W-E6327 Datasheet
Download the complete datasheet for Infineon BAV70W-E6327 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

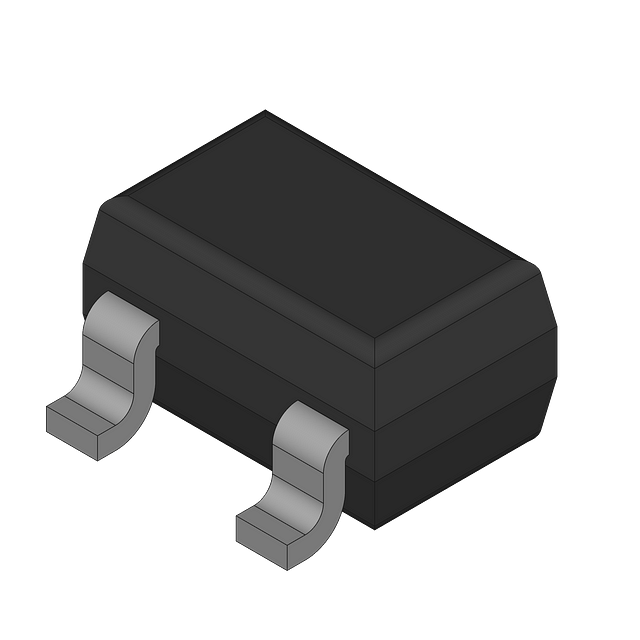

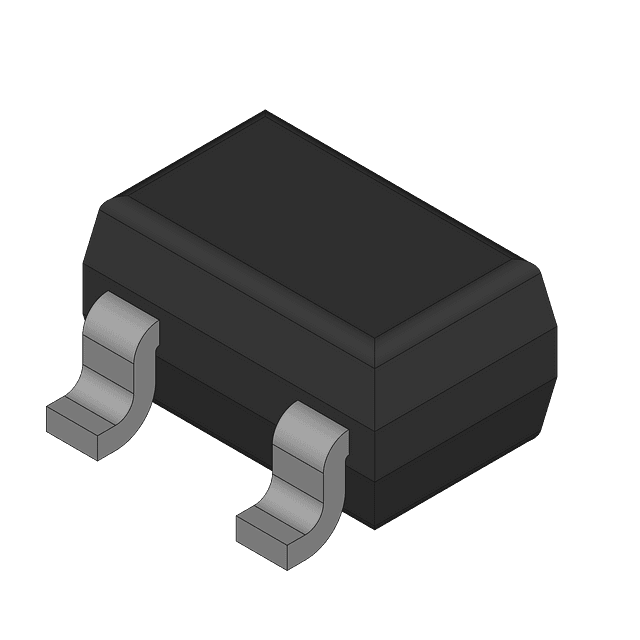

Product Images
