Frequency250MHz
PackageSOT-23
Current Rating-100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BC857C-E6327 technical specifications.
General
Package/Case
SOT-23
Collector Base Voltage (VCBO)
50V
Collector Emitter Breakdown Voltage
45V
Collector Emitter Voltage (VCEO)
45V
Collector-emitter Voltage-Max
650mV
Current Rating
-100mA
Emitter Base Voltage (VEBO)
5V
Frequency
250MHz
Lead Free
Lead Free
Max Breakdown Voltage
45V
Max Collector Current
100mA
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
330mW
Mount
Surface Mount
Number of Elements
1
Package Quantity
1
Packaging
Tape and Reel
Polarity
PNP
Power Dissipation
330mW
Radiation Hardening
No
RoHS Compliant
Yes
Transition Frequency
250MHz
DC Rated Voltage
-45V
Compliance
RoHS
Compliant
Datasheet
Infineon BC857C-E6327 Datasheet
Download the complete datasheet for Infineon BC857C-E6327 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

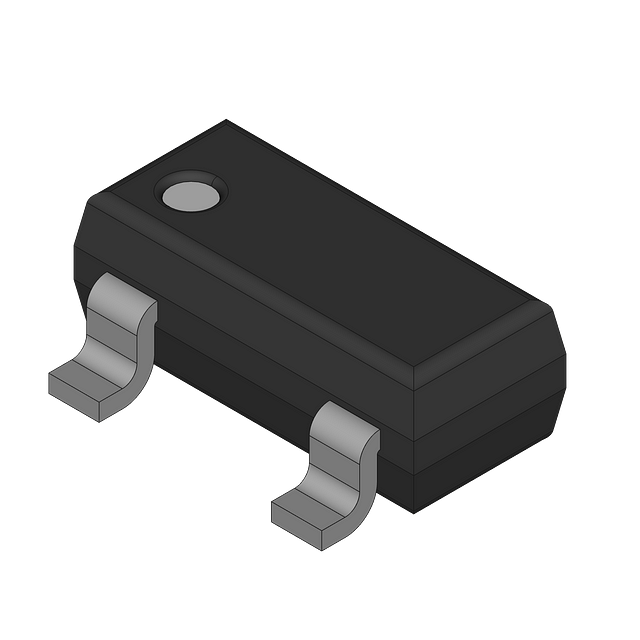

Product Images
