Frequency250MHz
PackageTO-253-4
Current Rating-100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BCV62AE6327 technical specifications.
General
Package/Case
TO-253-4
Collector Base Voltage (VCBO)
30V
Collector Emitter Breakdown Voltage
30V
Collector Emitter Saturation Voltage
650mV
Collector-emitter Voltage-Max
650mV
Current Rating
-100mA
Emitter Base Voltage (VEBO)
6V
Height
1mm
Lead Free
Lead Free
Length
2.9mm
Max Breakdown Voltage
30V
Max Collector Current
100mA
Max Frequency
250MHz
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
300mW
Mount
Surface Mount
Package Quantity
1
Packaging
Cut Tape
Transition Frequency
250MHz
DC Rated Voltage
-30V
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Infineon BCV62AE6327 Datasheet
Download the complete datasheet for Infineon BCV62AE6327 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

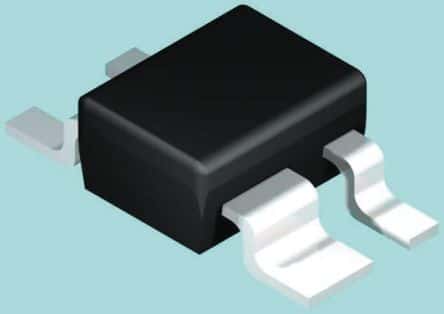

Product Images
