Technical Specifications
Infineon BCX71K-E6327 technical specifications.
General
| Package/Case | TO-236-3 |
| Collector Base Voltage (VCBO) | 45V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | 550mV |
| Collector-emitter Voltage-Max | 550mV |
| Emitter Base Voltage (VEBO) | 5V |
| Height | 0.9mm |
| Length | 2.9mm |
| Max Breakdown Voltage | 45V |
| Max Collector Current | 100mA |
| Max Frequency | 250MHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 330mW |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Transition Frequency | 250MHz |
| Width | 1.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BCX71K-E6327 Datasheet
Download the complete datasheet for Infineon BCX71K-E6327 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

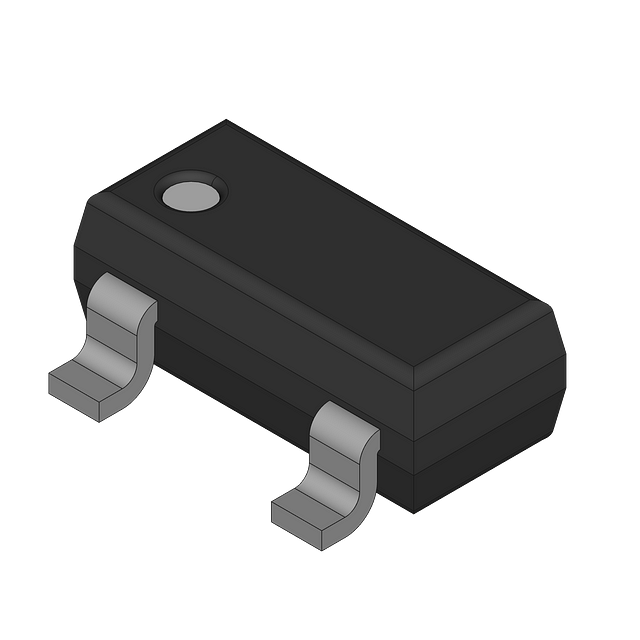

Product Images
