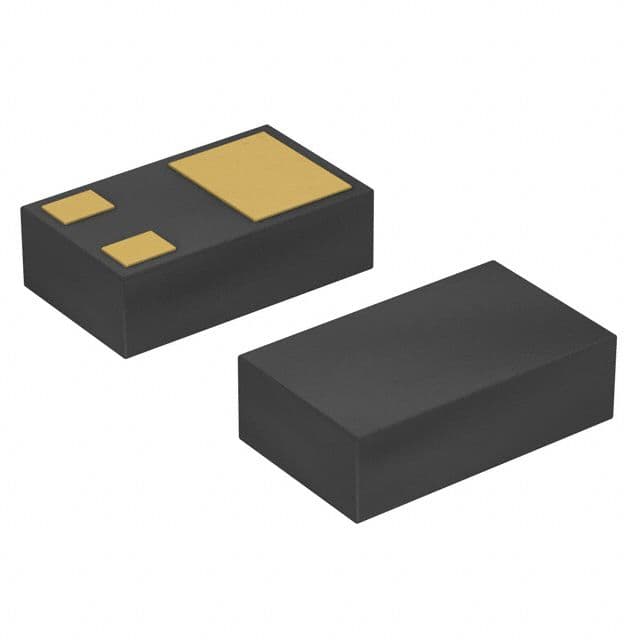

The BFR740L3RHE6327 is a single NPN transistor from Infineon with a maximum collector current rating of 30mA and a maximum power dissipation of 160mW. It operates over a temperature range of -65°C to 150°C and is packaged in a surface mount configuration. The device is lead free and compliant with Reach SVHC regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BFR740L3RHE6327 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Collector Base Voltage (VCBO) | 13V |
| Collector Emitter Breakdown Voltage | 4.7V |
| Collector Emitter Voltage (VCEO) | 4V |
| Current Rating | 30mA |
| Emitter Base Voltage (VEBO) | 1.2V |
| Frequency | 42GHz |
| Gain | 24.5dB |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Breakdown Voltage | 4.7V |
| Max Collector Current | 30mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 160mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | NPN |
| Power Dissipation | 160mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| Transition Frequency | 42GHz |
| DC Rated Voltage | 4V |
| Width | 0.6mm |
| RoHS | Compliant |
