Frequency6GHz
PackageSOT-723
MountingSurface Mount
Quick Jump:
Technical Specifications
Infineon BFR93A-E6327 technical specifications.
General
Package/Case
SOT-723
Collector Base Voltage (VCBO)
20V
Collector Emitter Breakdown Voltage
9V
Emitter Base Voltage (VEBO)
2V
Gain
15.5dB
Height
1mm
Length
2.9mm
Max Collector Current
90mA
Max Frequency
6GHz
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
300mW
Mount
Surface Mount
Packaging
Tape and Reel
Transition Frequency
14GHz
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Infineon BFR93A-E6327 Datasheet
Download the complete datasheet for Infineon BFR93A-E6327 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

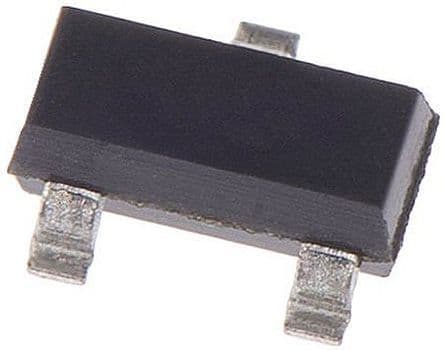

Product Images
