Technical Specifications
Infineon BSC018N04LSG technical specifications.
General
| Package/Case | 100 |
| Continuous Drain Current (ID) | 100A |
| Fall Time | 9ns |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Input Capacitance | 12nF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125W |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Rds On Max | 1.8mR |
| RoHS Compliant | Yes |
| Series | OptoMOS™ |
| Turn-Off Delay Time | 55ns |
| Turn-On Delay Time | 13ns |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSC018N04LSG Datasheet
Download the complete datasheet for Infineon BSC018N04LSG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

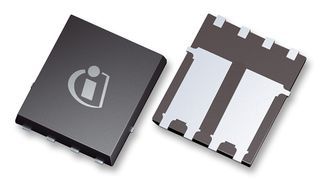

Product Images
