Technical Specifications
Infineon BSR202NL6327 technical specifications.
General
| Package/Case | TO-236-3 |
| Continuous Drain Current (ID) | 3.8A |
| Drain to Source Voltage (Vdss) | 20V |
| Fall Time | 3.7ns |
| Gate to Source Voltage (Vgs) | 12V |
| Height | 1.1mm |
| Input Capacitance | 1.147nF |
| Length | 3mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Rds On Max | 21mR |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Threshold Voltage | 950mV |
| Turn-Off Delay Time | 19ns |
| Turn-On Delay Time | 8.8ns |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BSR202NL6327 Datasheet
Download the complete datasheet for Infineon BSR202NL6327 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

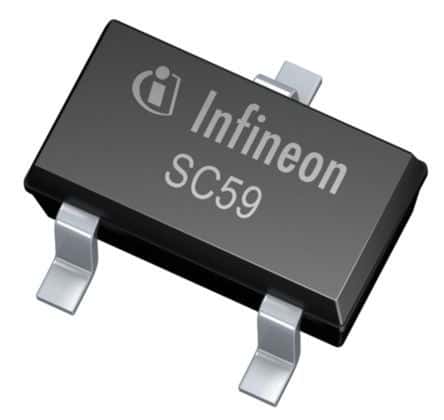

Product Images
