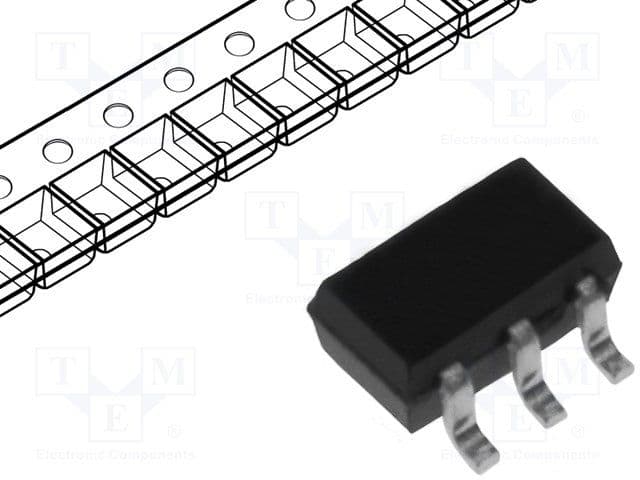

The BSV236SPH6327 is a surface mount N-channel MOSFET from Infineon with a maximum operating temperature range of -55°C to 150°C. It has a maximum power dissipation of 560mW and a maximum drain to source voltage of 20V. The device features a continuous drain current of 1.5A and a maximum Rds on resistance of 175mR. The BSV236SPH6327 is packaged in a SOT-363-6 package and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BSV236SPH6327 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BSV236SPH6327 technical specifications.
| Package/Case | SOT-363-6 |
| Continuous Drain Current (ID) | 1.5A |
| Drain to Source Voltage (Vdss) | 20V |
| Fall Time | 12.2ns |
| Gate to Source Voltage (Vgs) | 12V |
| Input Capacitance | 228pF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 560mW |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Rds On Max | 175mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 14.1ns |
| Turn-On Delay Time | 5.7ns |
| RoHS | Compliant |
