Quick Jump:
Technical Specifications
Infineon BSZ035N03MSG technical specifications.
General
Continuous Drain Current (ID)
40A
Drain to Source Voltage (Vdss)
30V
Fall Time
4.8ns
Gate to Source Voltage (Vgs)
20V
Halogen Free
Halogen Free
Height
1.1mm
Input Capacitance
5.7nF
Length
3.4mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
69W
Package Quantity
1
Packaging
Tape and Reel
Rds On Max
3.5mR
RoHS Compliant
Yes
Series
OptiMOS™
Turn-Off Delay Time
38ns
Turn-On Delay Time
10ns
Width
3.4mm
Compliance
RoHS
Compliant
Datasheet
Infineon BSZ035N03MSG Datasheet
Download the complete datasheet for Infineon BSZ035N03MSG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

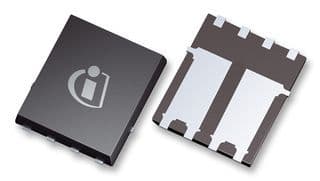

Product Images
