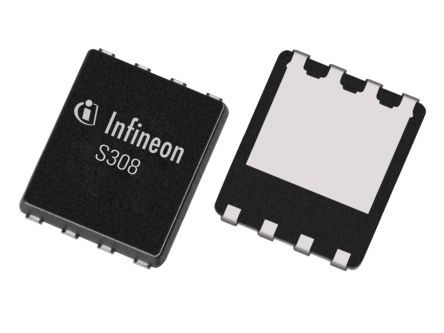

The Infineon BSZ0902NSI is a 30V power MOSFET with a continuous drain current of 21A and a gate to source voltage of 20V. It has a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. The device is packaged in a tape and reel format and is compliant with RoHS and Reach SVHC regulations. It features a low Rds on max of 2.8mR and a turn-on delay time of 3.9ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BSZ0902NSI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BSZ0902NSI technical specifications.
| Continuous Drain Current (ID) | 21A |
| Drain to Source Voltage (Vdss) | 30V |
| Gate to Source Voltage (Vgs) | 20V |
| Halogen Free | Halogen Free |
| Height | 1.1mm |
| Input Capacitance | 1.5nF |
| Length | 3.4mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2.5W |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Rds On Max | 2.8mR |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 20ns |
| Turn-On Delay Time | 3.9ns |
| Width | 3.4mm |
| RoHS | Compliant |
