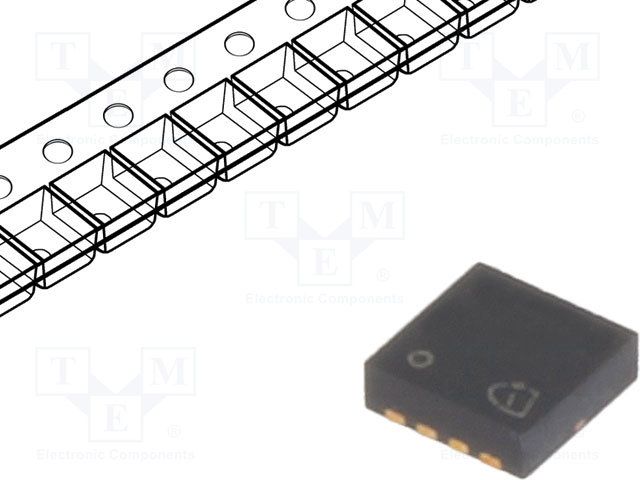

The BSZ180P03NS3G is a 39.6A MOSFET from Infineon with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It features a 25V gate to source voltage and a maximum power dissipation of 2.1W. This device is RoHS compliant and packaged in tape and reel quantities of 5000. The OptiMOS MOSFET has a fall time of 3ns and a turn-off delay time of 20ns.
Checking distributor stock and pricing after the page loads.
| Continuous Drain Current (ID) | 39.6A |
| Fall Time | 3ns |
| Gate to Source Voltage (Vgs) | 25V |
| Halogen Free | Halogen Free |
| Input Capacitance | 2.22nF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2.1W |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rds On Max | 18mR |
| RoHS Compliant | Yes |
| Series | OptiMOS™ |
| Turn-Off Delay Time | 20ns |
| Turn-On Delay Time | 11ns |
| RoHS | Compliant |
