Technical Specifications
Infineon BTS452-R technical specifications.
General
| Package/Case | TO-252-5 |
| Halogen Free | Halogen Free |
| Height | 2.3mm |
| Length | 6.5mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 6.5A |
| Max Power Dissipation | 41.6W |
| Max Supply Current | 2mA |
| Max Supply Voltage | 52V |
| Min Supply Voltage | 6V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 150mR |
| Operating Supply Voltage | 52V |
| Output Current | 2.2A |
| Output Current per Channel | 2.2A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | miniPROFET® |
| Supply Current | 800uA |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BTS452-R Datasheet
Download the complete datasheet for Infineon BTS452-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

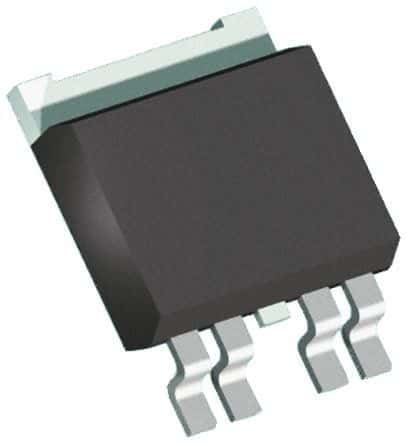

Product Images
