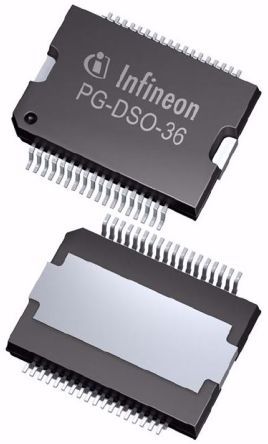

Infineon BTS4880-R technical specifications.
| Package/Case | SOIC |
| Fault Protection | Over Voltage, Over Temperature |
| Halogen Free | Halogen Free |
| Interface | On/Off |
| Lead Free | Contains Lead |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 625mA |
| Max Supply Voltage | 45V |
| Min Supply Voltage | 11V |
| Mount | Surface Mount |
| Number of Channels | 8 |
| Number of Outputs | 8 |
| On-State Resistance | 150mR |
| Output Configuration | High Side |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Series | miniPROFET® |
| RoHS | Compliant |
Download the complete datasheet for Infineon BTS4880-R to view detailed technical specifications.
