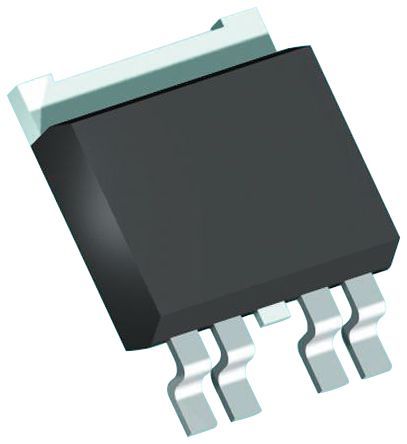

The BTS6133D is a single-channel power switch from Infineon with a maximum input voltage of 38V and maximum output current of 75A. It has a maximum power dissipation of 59W and operates over a temperature range of -40°C to 150°C. The device is packaged in a TO-252-5 case and is suitable for surface mount technology. The BTS6133D is compliant with RoHS regulations and is available on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon BTS6133D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-252-5 |
| Halogen Free | Halogen Free |
| Lead Free | Contains Lead |
| Max Input Voltage | 38V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 75A |
| Max Power Dissipation | 59W |
| Max Supply Voltage | 38V |
| Min Supply Voltage | 5.5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 8mR |
| Output Current per Channel | 41A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 59W |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PROFET® |
| Termination | SMD/SMT |
| RoHS | Compliant |
