Technical Specifications
Infineon BTS640S2-G technical specifications.
General
| Package/Case | TO-263-7 |
| Halogen Free | Halogen Free |
| Height | 4.4mm |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Length | 9.9mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50A |
| Max Power Dissipation | 85W |
| Max Supply Voltage | 34V |
| Min Supply Voltage | 5V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| On-State Resistance | 27mR |
| Operating Supply Voltage | 34V |
| Output Current per Channel | 12.6A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | PROFET® |
| Supply Current | 1.2mA |
| Thickness | 4.4mm |
| Width | 9.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BTS640S2-G Datasheet
Download the complete datasheet for Infineon BTS640S2-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

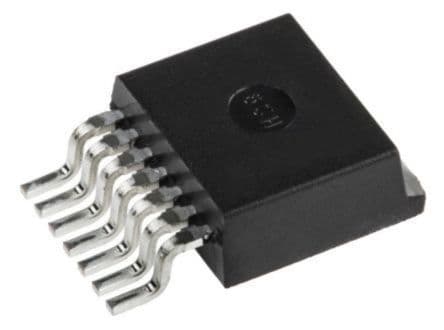

Product Images
