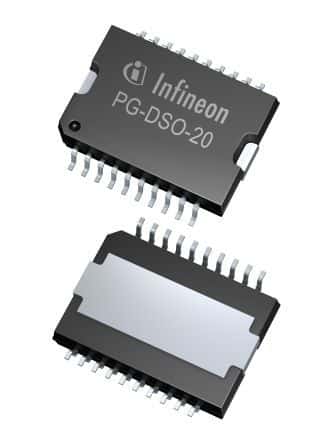

The BTS712-N1 is a 4-channel power MOSFET switch from Infineon, packaged in a SOIC case. It can handle a maximum drain-to-source voltage of 34V and a maximum load current of 1.9A. The device operates within a temperature range of -40°C to 150°C and is not radiation hardened. It is not compliant with Reach SVHC regulations.
Sign in to ask questions about the Infineon BTS712-N1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon BTS712-N1 technical specifications.
| Package/Case | SOIC |
| Drain to Source Voltage (Vdss) | 34V |
| Halogen Free | Halogen Free |
| Lead Free | Contains Lead |
| Load Current | 1.9A |
| Max Input Voltage | 34V |
| Min Input Voltage | 5V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 4A |
| Max Power Dissipation | 3.6W |
| Max Supply Current | 800uA |
| Max Supply Voltage | 34V |
| Min Supply Voltage | 5V |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| On-State Resistance | 165mR |
| Operating Supply Voltage | 34V |
| Output Current | 1.9A |
| Output Current per Channel | 1.9A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 3.6W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | PROFET® |
| Supply Current | 1.2mA |
| RoHS | Compliant |
