Technical Specifications
Infineon BTS721-L1 technical specifications.
General
| Package/Case | SOIC |
| Drain to Source Voltage (Vdss) | 34V |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Load Current | 2.9A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 14A |
| Max Power Dissipation | 3.7W |
| Max Supply Voltage | 34V |
| Min Supply Voltage | 5V |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| On-State Resistance | 85mR |
| Operating Supply Voltage | 34V |
| Output Current | 2.5A |
| Output Current per Channel | 2.9A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 3.7W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | PROFET® |
| Supply Current | 8mA |
Compliance
| RoHS | Compliant |
Datasheet
Infineon BTS721-L1 Datasheet
Download the complete datasheet for Infineon BTS721-L1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

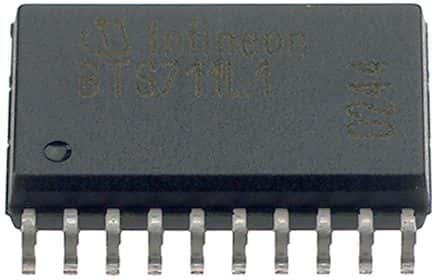

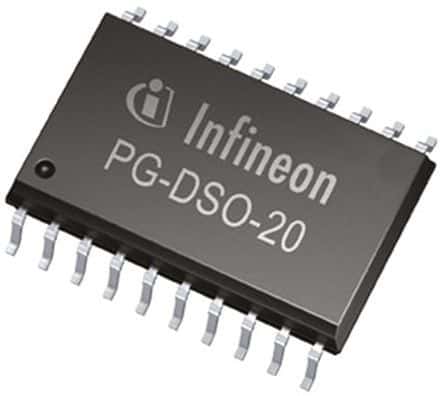

Product Images
