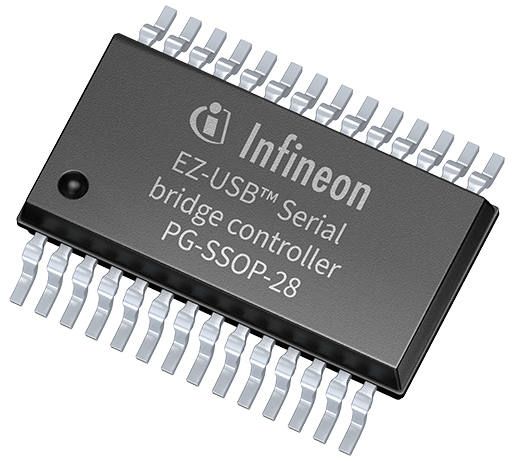

This device is a single-channel USB-to-UART low-power bridge controller for upgrading UART-based equipment to USB connectivity. It supports USB 2.0 Full-Speed operation at 12 Mbit/s, UART data rates up to 3 Mbps, and includes 8 GPIOs plus 512 bytes of flash for configuration storage. The controller integrates a 48 MHz clock oscillator, internal USB termination resistors, and support for bus-powered or self-powered designs. It operates from 1.71 V to 5.50 V across the industrial temperature range of -40 °C to 85 °C. This orderable version is supplied in a 28-pin SSOP package.
Checking distributor stock and pricing after the page loads.
Infineon CY7C65213-28PVXI technical specifications.
| USB standard | USB 2.0 Full-Speed |
| USB speed | 12Mbit/s |
| UART channels | 1 |
| UART data rate | 3Mbps |
| GPIO count | 8pins |
| Flash memory | 512bytes |
| Clock frequency | 48MHz |
| Operating voltage | 1.71 to 5.50V |
| Operating temperature | -40 to 85°C |
| ESD protection | 2.2kV HBM |
| TX buffer size | 256bytes |
| RX buffer size | 256bytes |
| Data bits | 7 or 8bits |
| Stop bits | 1 or 2bits |
| Parity modes | None, even, odd, mark, or space |
| Power configuration | Bus-powered or self-powered |
| Battery charger detection | USB Battery Charging Specification Rev. 1.2 peripheral detect only |
| Package type | 28-pin SSOP |
| RoHS | Compliant |
