This USB 3.2 Gen 1x2 peripheral controller targets high-bandwidth imaging, video, and data-acquisition applications. It integrates dual-core ARM Cortex-M4F/M0+ processing, 256 KB flash, and 512 KB SRAM, and supports either a 16-lane LVDS interface at 1.25 Gbps per lane or a 32-bit LVCMOS interface at 160 MHz DDR. The device operates from 1.7 V to 3.6 V across an industrial -40 °C to 85 °C range and is supplied in a 169-ball FBGA package. It also provides seven serial communication blocks, a USB full-speed device debug port, and two I2S/PDM-PCM interfaces with GPIO support.
Checking distributor stock and pricing after the page loads.

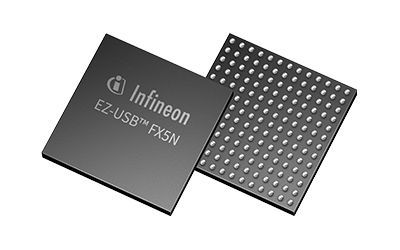

Infineon CYUSB3282-FCAXIT technical specifications.
| USB Standard | USB 3.2 Gen 1x2 |
| USB Speed | 10Gbit/s |
| Processor Type | ARM Cortex-M4F/M0+ |
| Flash Memory | 256KB |
| SRAM | 512KB |
| LVDS Interface | 16lanes |
| LVDS Data Rate | 1.25Gbit/s/lane |
| LVCMOS Bus Width | 32bits |
| LVCMOS DDR Clock | 160MHz |
| Operating Voltage Min | 1.7V |
| Operating Voltage Max | 3.6V |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Package Type | 169-ball FBGA |
| Serial Communication Blocks | 7count |
| I2S/PDM-PCM Interfaces | 2count |
| USB-C Orientation Detection | Yes |
| USB Debug Port | Full-speed device debug port |
| Lead-free | Yes |
| Halogen Free | Yes |
| RoHS Compliant | Yes |
