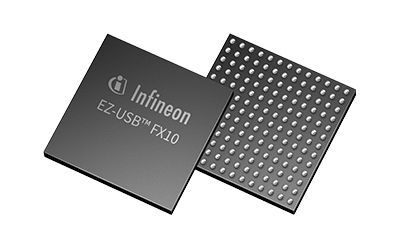

This USB 3.2 Gen 2 peripheral controller supports 10 Gbit/s operation and up to 8.8 Gbps throughput for high-bandwidth peripherals. It integrates dual-core ARM Cortex-M4F/M0+ processing, LVDS and 32-bit LVCMOS interfaces, 1024 kByte SRAM, and seven serial communication blocks. The device operates from 1.7 V to 3.6 V across a -40 °C to 85 °C industrial temperature range and is offered in a 169-ball FBGA package. It is intended for industrial cameras, machine vision, 3D scanners, medical imaging sensors, and other high-bandwidth instruments.
Checking distributor stock and pricing after the page loads.
Infineon CYUSB4012-FCAXIT technical specifications.
| USB standard | USB 3.2 Gen 2 |
| USB speed | 10Gbit/s |
| Throughput | 8.8Gbps |
| Processor type | Dual-core ARM Cortex-M4F/M0+ |
| SRAM | 1024kByte |
| LVDS interface | Yes |
| LVCMOS interface | 32-bit @ 160 MHz DDR |
| Serial communication blocks | 7 |
| Operating voltage range | 1.7 to 3.6V |
| Operating temperature range | -40 to 85°C |
| Peak reflow temperature | 260°C |
| Package type | 169-ball FBGA |
| Temperature grade | Industrial |
| RoHS | Compliant |
| Lead-free | Yes |
| Halogen Free | Yes |
