Technical Specifications
Infineon DSL70E6327 technical specifications.
General
| Capacitance | 5pF |
| Package/Case | TO-253-4 |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Reverse Leakage Current | 5nA |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 2 |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Peak Pulse Current | 27A |
| Peak Pulse Power | 245W |
| Power Line Protection | No |
| Reverse Standoff Voltage | 50V |
| Width | 1.3mm |
| Working Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Infineon DSL70E6327 Datasheet
Download the complete datasheet for Infineon DSL70E6327 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

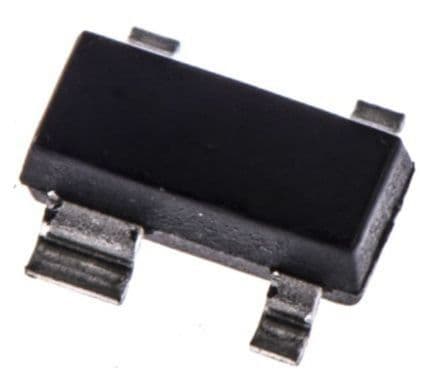

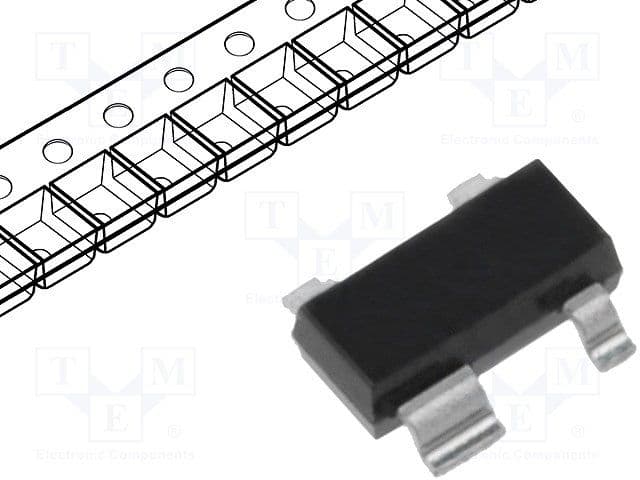

Product Images
