This ballast controller is designed for UV-C disinfection lamps and integrates the functions required for preheat, ignition, run mode, and protection. It uses a digital or mixed-signal lamp inverter control architecture with integrated critical conduction mode power factor correction and an integrated high-voltage level-shift half-bridge drive. The device supports up to two lamps in series, operates from a 0.3 V to 18 V VCC range, and is specified for a 300 mA to 500 mA output current range. It is housed in a PG-DSO-16 package and uses Infineon's Coreless Transformer Technology for high-voltage isolation.
Checking distributor stock and pricing after the page loads.

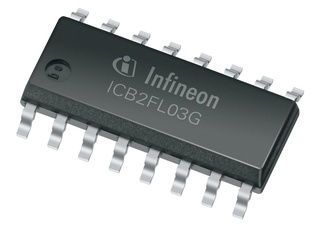

Infineon ICB2FL03G technical specifications.
| Output current range | 300 to 500mA |
| Supply voltage range (VCC) | 0.3 to 18V |

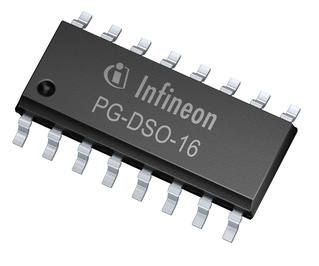

| Package | PG-DSO-16 |
| Topology | Half Bridge |
| Lamp count | Up to 2 in series |
| PFC mode | Critical conduction mode |
| Inverter control | Digital/mixed-signal |
| Half-bridge driver | Integrated HV level-shift |
| Isolation technology | Coreless Transformer Technology (CLT) |
| Protection features | Built-in |
| Parameter programming | Resistors only |
| Lamp overload adjustment | Separate adjustable levels |
| Dead time adjustment | Self-adapting |
| Test mode | Special in-circuit |
| RoHS Compliant | Yes |
| Lead-free | Yes |
| Halogen Free | Yes |
No datasheet is available for this part.
