This enhancement-mode GaN HEMT is rated for 650 V drain-source voltage and 14 A continuous drain current at 25°C case temperature. It provides 110 mΩ typical and 140 mΩ maximum on-state resistance, 2.4 nC typical gate charge, and 0 nC reverse-recovery charge for fast-switching power conversion. The device is housed in a bottom-cooled PG-LSON-8 surface-mount package and supports operation from -55°C to 150°C junction temperature. It is qualified for industrial applications, is RoHS compliant and halogen free, and is planned to be available until at least 2035.

Official FilesFiles supplied directly by the manufacturer for the most accurate available design resources.

DatasheetManufacturer direct AltiumManufacturer direct CadenceManufacturer direct MentorManufacturer direct EagleManufacturer direct KiCadManufacturer direct CADSTARManufacturer direct DesignSparkManufacturer direct

Power51W

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Technical Specifications

General

Technology	GaN HEMT
Drain-Source Voltage	650V
Drain-Source Transient Voltage	900V
Continuous Drain Current	14A
Pulsed Drain Current	30A
On-State Resistance Typ	110mΩ
On-State Resistance Max	140mΩ
Gate Charge Typ	2.4nC
Output Charge Typ	18nC
Power Dissipation	51W
Operating Junction Temperature Min	-55°C
Operating Junction Temperature Max	150°C
Thermal Resistance Junction-Case	2.5°C/W
Input Capacitance Typ	170pF
Output Capacitance Typ	29pF
Reverse Recovery Charge	0nC
dv/dt Max	200V/ns
Qualification	Industrial

Compliance

RoHS	Compliant
Halogen Free	Yes

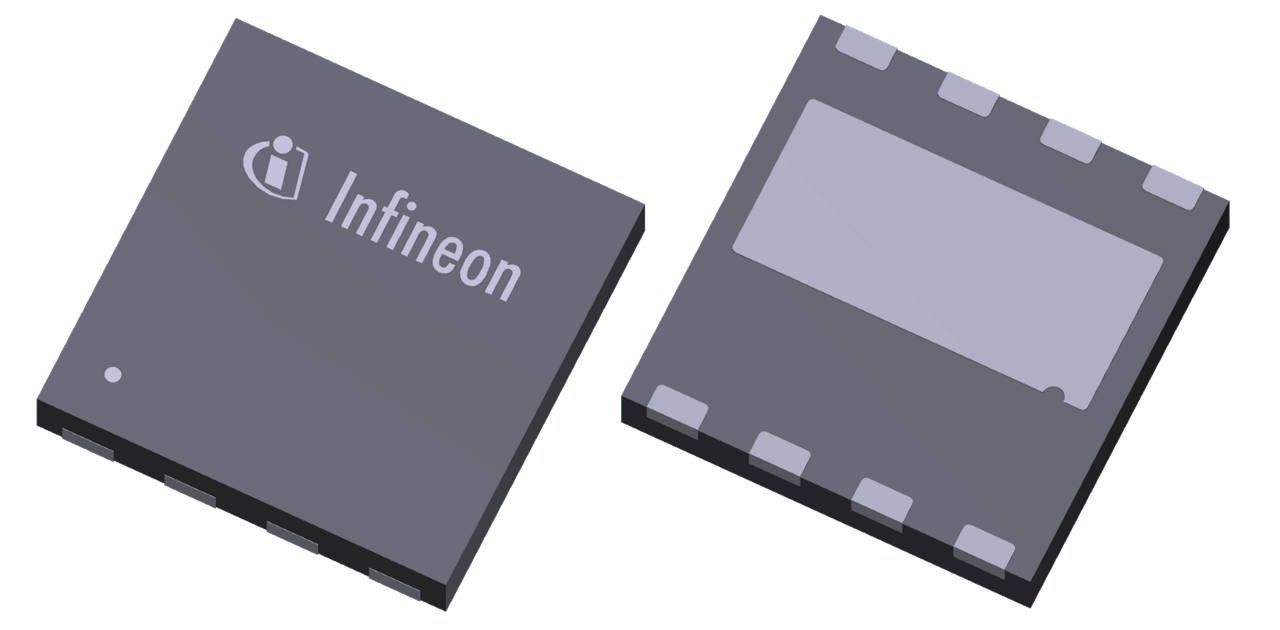

Product Images
