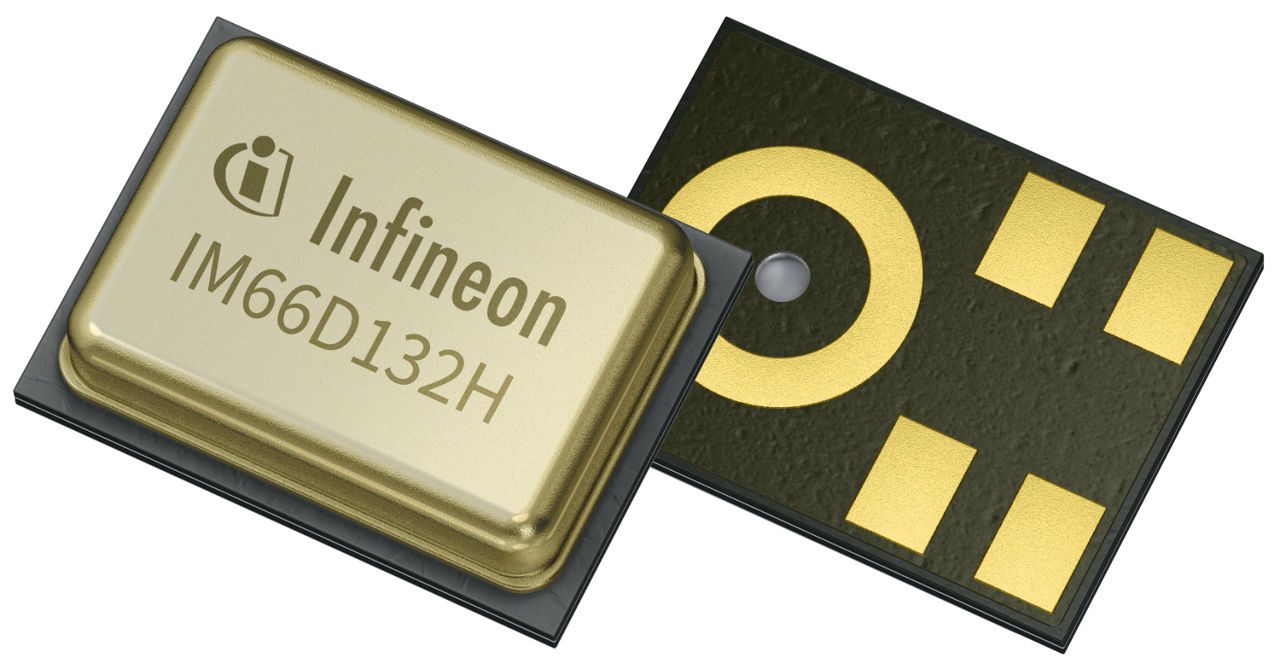

This is an ultra-low-power digital PDM MEMS microphone for battery-powered audio applications. It delivers 66.5 dB(A) signal-to-noise ratio, a 132 dBSPL acoustic overload point, and a flat frequency response with 20 Hz low-frequency roll-off in normal mode. The device operates from a 1.6 V to 3.465 V supply and typically consumes 580 µA in normal mode or 190 µA in low-power mode. It uses a bottom-port PG-TLGA-5-9 package measuring 3.5 mm × 2.65 mm × 0.98 mm and provides component-level IP57 dust and water resistance with enhanced RF shielding.
Infineon IM66D132HV01 technical specifications.
| Interface | Digital PDM |
| Signal-to-noise ratio | 66.5dB(A) |
| Acoustic overload point | 132dBSPL |
| Sensitivity | -37dBFS |
| Low-frequency roll-off | 20Hz |
| Supply voltage | 1.6 to 3.465V |
| Current consumption (normal mode) | 580µA |
| Current consumption (low-power mode) | 190µA |
| Operating temperature range | -40 to 85°C |
| Storage temperature range | -40 to 125°C |
| Package dimensions | 3.5 x 2.65 x 0.98mm |
| Package style | PG-TLGA-5-9 |
| Port location | Bottom port |
| Ingress protection | IP57 |
| Clock frequency range (low-power mode) | 370 to 1220kHz |
| Clock frequency range (normal mode) | 1.34 to 4.18MHz |
| Directivity | Omnidirectional |
| Polarity | Positive pressure increases density of 1's |
No datasheet is available for this part.
