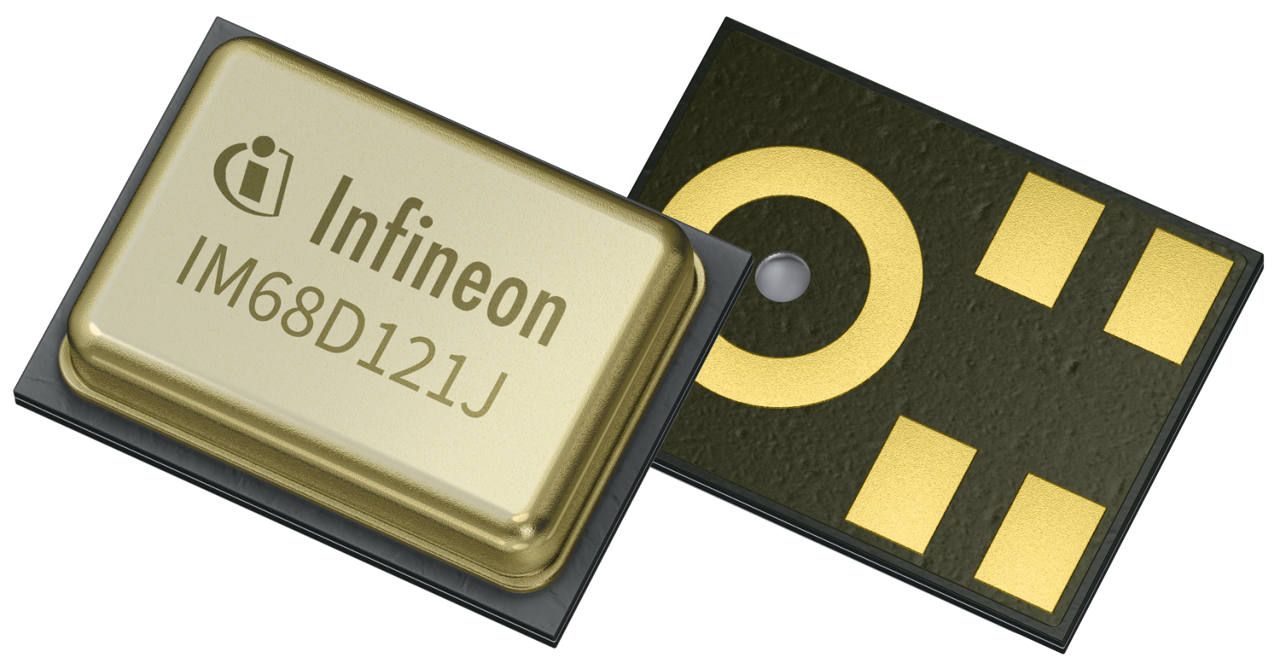

This digital MEMS microphone uses a PDM interface and is intended for battery-powered audio applications. It provides 68 dB(A) signal-to-noise ratio, -26 dBFS sensitivity, a 121 dBSPL acoustic overload point, and 20 Hz low-frequency roll-off. The device operates from 1.6 V to 3.465 V and draws 580 µA in normal mode with a 190 µA low-power mode. It is housed in a 3.50 x 2.65 x 0.98 mm bottom-port PG-TLGA-5-9 package with enhanced RF shielding and component-level IP57 dust and water resistance.
Infineon IM68D121JV01 technical specifications.
| Interface | Digital PDM |
| Signal-to-Noise Ratio | 68dB(A) |
| Sensitivity | -26dBFS |
| Acoustic Overload Point | 121dBSPL |
| Low-Frequency Roll-Off | 20Hz |
| Supply Voltage Min | 1.6V |
| Supply Voltage Max | 3.465V |
| Current Consumption (Normal Mode) | 580µA |
| Current Consumption (Low Power Mode) | 190µA |
| Package Dimensions | 3.50 x 2.65 x 0.98mm |
| Ingress Protection | IP57 |
| Port Location | Bottom port |
| RF Shielding | Enhanced |
| AEC-Q103-003 Qualified | on demand |
| RoHS | Yes |
| Lead-free | Yes |
| Halogen Free | Yes |
No datasheet is available for this part.
